Introduction
GraphQL is a query language used to communicate with databases and it is most effective and suitable when you have a complex data structure and the frontend only requires the data they requested. GraphQL utilizes a strongly-typed schema and fixed data structure approach which improves the overall system reliability. For Example, the declarative model of GraphQL API can make your API consistent and predictable, which allows front-end developers to avoid making any change from their end when there is a change from the backend.
GraphQL creates a layer on the backend and specifies the APIs that provide data to the frontend. It is capable of fetching specific data and reducing network usage which ultimately improves the performance of the overall system. For Example, in the micro-services architecture backend, just calling a single GraphQL endpoint can cut down the number of requests from the frontend by processing, combining, filtering, and returning the data from different services.
In this article, we will create GraphQL API for a school management system that will have data relationships for students, teachers, and courses. Let’s suppose that we have enrolled students and assigned teachers to different courses, we will implement GraphQL API for the scenario where we are fetching the course along with the enrolled students and assigned teachers.
Prerequisites
To get started with GraphQL API, you can choose the backend technology stack of your choice. The most commonly used are Nodejs, Python(Flask), and Python(Django).
We will be working with:
Python – Download from the Python Website according to your OS and Install it. We are using Windows OS, VS Code IDE, command line terminal, and Python version 3.12.3.
Django – We are using Django as a web framework for clean and pragmatic design to speed up the development process.
Graphene-Django – Graphene Django is a library specifically to work with GraphQL in Django Framework.
Guide on setting up the development environment using Python and Django.
The very first step to working with any technology stack is to create a development environment. The good thing about working with Django is that you don't need a separate web server for it because it has its own.
Let’s start by creating a virtual environment:
Open your project directory in IDE and the command line terminal to run the following commands:
python -m venv smsvenv
.\smsvenv\Scripts\activate
Before running the above commands, make sure that you have installed Python on your OS. These commands will create and activate a virtual environment where you have to install all required dependencies(Django, Graphene-Django, etc.)
Now install the dependencies by running the commands below:
pip install django
pip install graphene-django
Once the above installations are completed, using the Django commands below we will create a folder structure for our GraphQL API project.
django-admin startproject school_management
cd school_management
django-admin startapp

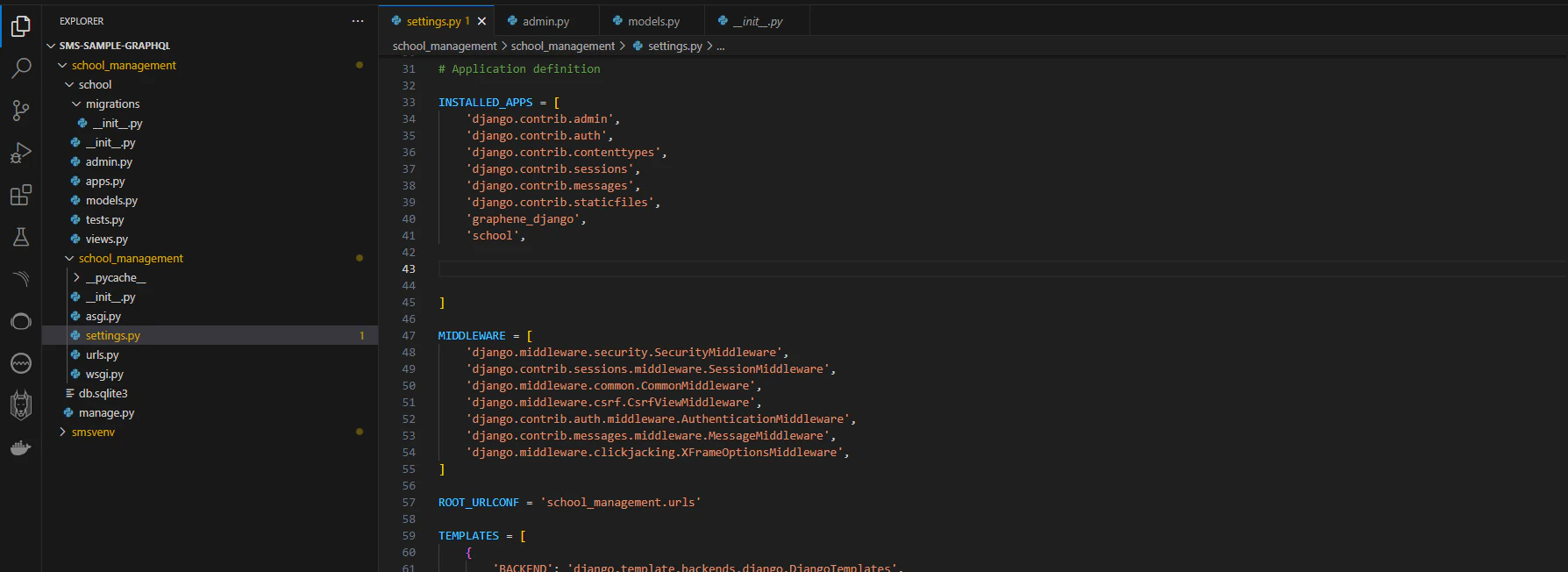

Now, we need to add graphene-django and school to INSTALLED_APPS located in school_management/settings.py
Step-by-Step Guide to Creating GraphQL API
Setting Up the Database

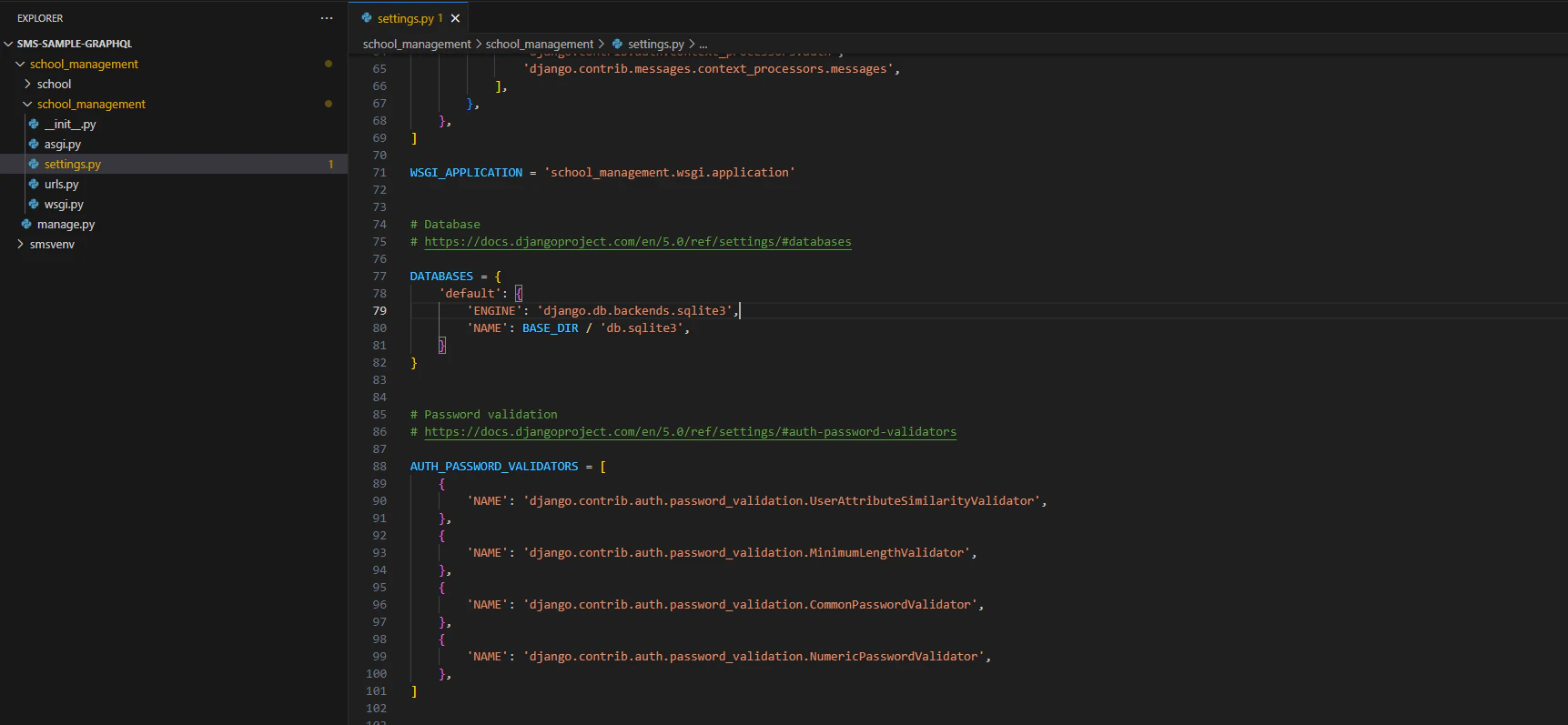

Default SQLite setup on Django
In the school_management/settings.py file, you can add the configurations for the database. We are using SQLite database configurations that come by default with Django.
We will create Models with their relationships in school/models.py file for Django’s ORM. We will add three classes i.e., teacher, student, and course. Each will have their column names and types.
from django.db import models
class Student(models.Model):
name = models.CharField(max_length=100)
age = models.IntegerField()
class Teacher(models.Model):
name = models.CharField(max_length=100)
class Course(models.Model):
name = models.CharField(max_length=100)
Describe the relationships: Many-to-many (students and courses), one-to-many (teachers and courses)
Many-to-Many – Each student can enroll in multiple courses and each course with have multiple students. We will add this relationship under the course model:
class Course(models.Model):
name = models.CharField(max_length=100)
students = models.ManyToManyField(Student)
One-to-Many – Each course will have one teacher but one teacher can teach multiple courses. For this relationship, we will create a teacher foreign key field under the course model.
class Course(models.Model):
name = models.CharField(max_length=100)
teacher = models.ForeignKey(Teacher, on_delete=models.CASCADE)
students = models.ManyToManyField(Student)

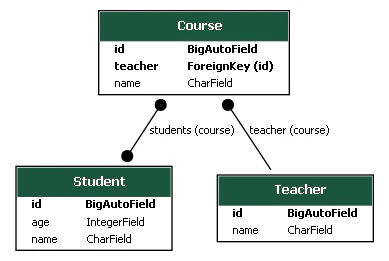

The overall schema will look like this:
1. Migrate Models using the commands:
python manage.py makemigrations
python manage.py migrate
2. Create Superuser:
python manage.py createsuperuser
3. Register Models in school/admin.py:
from django.contrib import admin
from .models import Student, Teacher, Course
admin.site.register(Student)
admin.site.register(Teacher)
admin.site.register(Course)
4. Run the server using the command:
python manage.py runserver
5. Access the link on the browser:

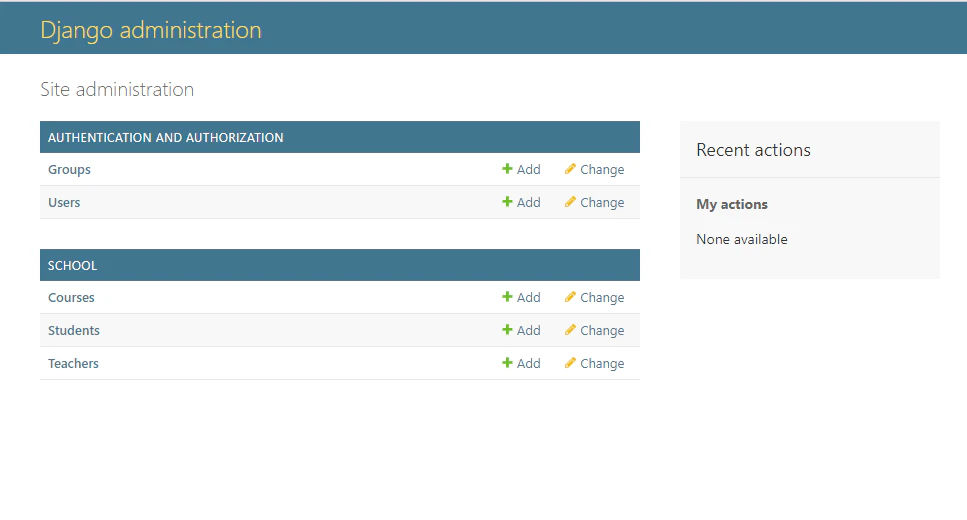

6. Add the data from the admin interface:
Types – Structure of data requested by the client. Queries with their resolvers – Definition of queries to fetch data(read-only) from the database.

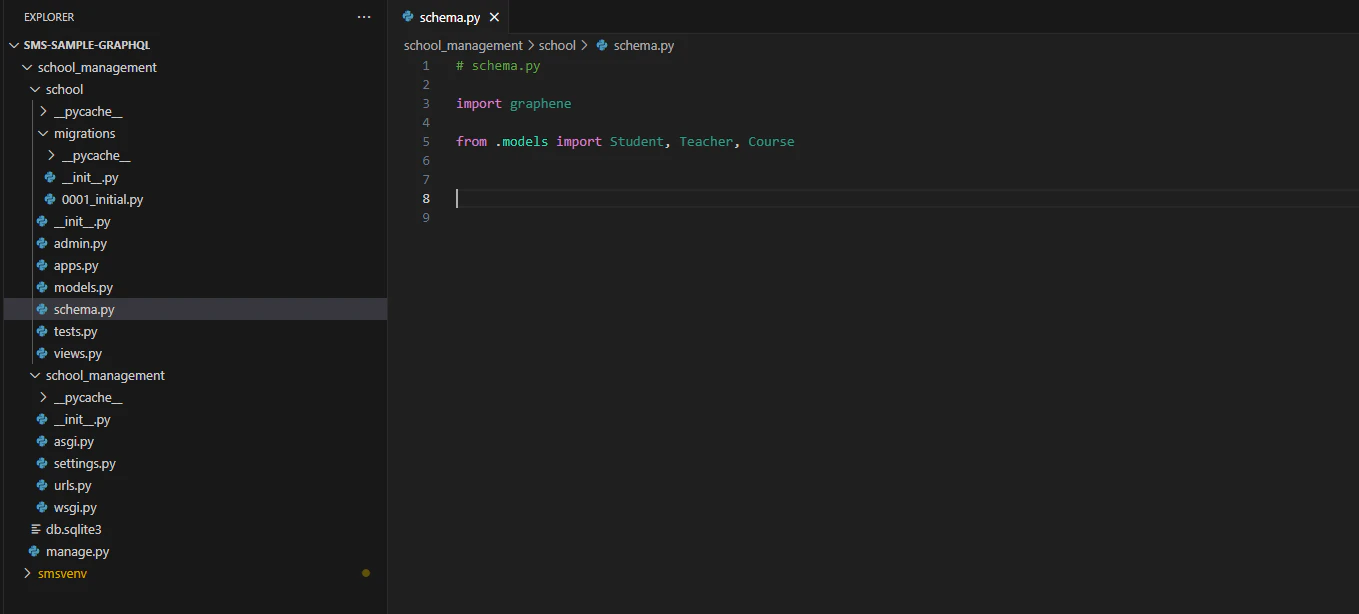

After adding the schema.py file, the directory structure of our project will look like this:
# schema.py
import graphene
from graphene_django.types import DjangoObjectType
from .models import Student, Teacher, Course
class StudentType(DjangoObjectType):
class Meta:
model = Student
class TeacherType(DjangoObjectType):
class Meta:
model = Teacher
class CourseType(DjangoObjectType):
class Meta:
model = Course
Creating Queries and Implementation of Resolvers in Django to handle and fetch nested data:
Now we will use the types to fetch the information from the database. For example, if we want to fetch the information of the course assigned to a teacher with all the students that are enrolled in it, we need to define a Query that contains GraphQL lists for each type and their resolvers that are used to fetch and return data for list associated with each type of schema. The entire code in schema.py will be:
# schema.py
import graphene
from graphene_django.types import DjangoObjectType
from .models import Student, Teacher, Course
class StudentType(DjangoObjectType):
class Meta:
model = Student
class TeacherType(DjangoObjectType):
class Meta:
model = Teacher
class CourseType(DjangoObjectType):
class Meta:
model = Course
class Query(graphene.ObjectType):
all_students = graphene.List(StudentType)
all_teachers = graphene.List(TeacherType)
all_courses = graphene.List(CourseType)
def resolve_all_students(self, info):
return Student.objects.all()
def resolve_all_teachers(self, info):
return Teacher.objects.all()
def resolve_all_courses(self, info):
return Course.objects.all()
schema = graphene.Schema(query=Query)
Note: Queries are used just the read-only operations like sorting or filtering. To update data we use mutations.
Create GraphQL view and add graphql/ URL
In the last step, we will wire up GraphQL with Django by adding a view in school/views.py to use the interface to test our queries and mapping the URL with that view in the main school_management/urls.py to access it through the browser:
# school/views.py
from django.http import JsonResponse
from graphene_django.views import GraphQLView
from .schema import schema
def graphql_view(request):
view = GraphQLView.as_view(schema=schema, graphiql=True)
return view(request)
# school_management/urls.py
from django.contrib import admin
from school.views import graphql_view
from django.urls import path
urlpatterns = [
path('admin/', admin.site.urls),
path('graphql/', graphql_view),
]
Testing the API
Using tools like GraphiQL or Postman for testing GraphQL queries.
In graphql_view above, we passed a parameter graphiql=True that allows us to use the graphqli interface to test our APIs. This can be accessed by navigating to http://127.0.0.1:8000/graphql/

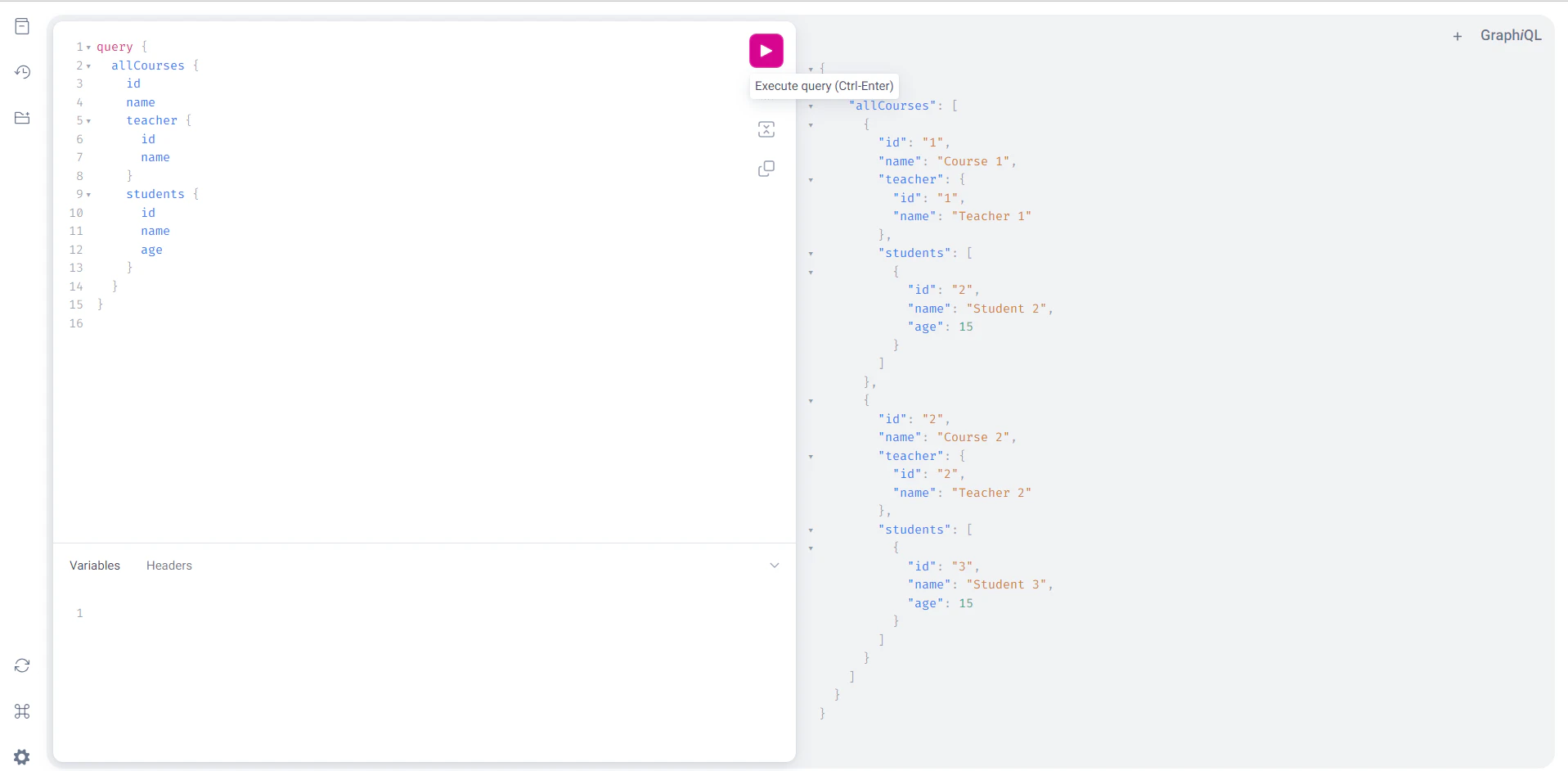

The below snapshot of graphqli UI shows our query and its response that fetches the information of courses and their associated teacher and students:
Conclusion
In this article, we have gone through the importance of using Graphql with fundamentals to build a simple Graphql API for handling complex data structures. Using Graphql is most beneficial and effective in situations where API is expected to be integrated across different clients with a specific data structure or only requires specific data with high performance and minimum bandwidth usage. The best way to have a grip on Graphql is to get your hands on it and start implementing it for various scenarios.
